High Flow 3.5 Mpa Pneumatic Quick Disconnect Couplings QKD-T Non - Valve Type

Name: High Flow 35 Mpa Pneumatic Quick Disconnect Couplings QKDT Non Valve Type
Brand: SONGQIAO
Price: 1 USD

Brand Name : SONGQIAO

Model Number : QKD-T

Place of Origin : Ningbo,China(Mainland)

Payment Terms : L/C, T/T

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Material : Carbon Steel

Standard : Chinese Standard

WP : Working pressures to 3.5MPA

WT : -20℃ to +120℃

Contact Now

QKD-T High Flow, Non-Valve type Pneumatic couplings in Carbon Steel, Chrome Plated

Descripton:
QKD-T PNEUMATIC QUICK COUPLING(STEEL)
Features: straight through. Non valve.
Advantages: simple structure. High flow valve.
Application: steel manufacture, metallurgy, machinery equipments.
Working Pressure: 3.5Mpa.
Working Temperature: -20℃ to +120℃.

High Flow 3.5 Mpa Pneumatic Quick Disconnect Couplings QKD-T Non - Valve Type

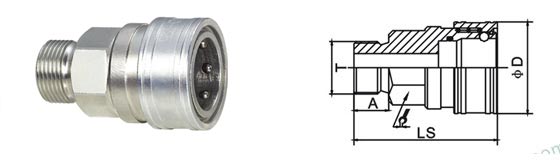

PARTNO.	LS	A	￠D	HEX	T
QKD-T25-SM	91	22	58	41	G1"

High Flow 3.5 Mpa Pneumatic Quick Disconnect Couplings QKD-T Non - Valve Type

PARTNO.	LP	A	C	CP	￠T
QKD-T25-PH	106	57	39	42	27

High Flow 3.5 Mpa Pneumatic Quick Disconnect Couplings QKD-T Non - Valve Type

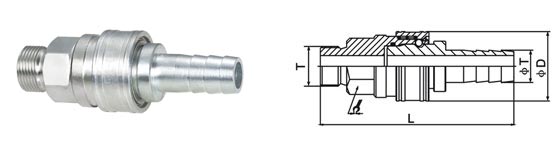

PARTNO.	L	T	￠D	HEX	￠T
QKD-T25	160	G1"	58	41	27
