1 Inch Threaded Female Coupling Connect Under Pressure Hydraulic KZE-BB In Brass

Brand Name : SONGQIAO

Model Number : KZE-BB

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : Compatible with PARKER 6100 series, thread locked

WP : Working pressures to 3,000 psi (207 bar)

Material : Brass

Size : 3/4' - 1-1/4'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Thread lock

Contact Now

KZE-BB Threaded Connection Type, Connect under Pressure, Hydraulic Couplings in Brass

Descripton:


KZE-BB Thread type hydraulic quick coupling (brass)
Applications: KZE-BB series is a thread-to-connect. It can be widely used in various application. This application be connected under pressure and less spillage or non-spillage.
KZE-BB series can be suitable used in connecting equipment of the hydraulic lines like power tongs, swivels and mobile drillings. It also widely used dump tracks, and dump trailer to connect with to wet line hydraulic system. And it also suitable used in submersible pumps, engine test stands, and the equipment require connect under high pressure or high liquid transfer.


Specifications:

Body Size(in) 3/4 1 1-1/4
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 28 50 88
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR

KZE-BB Features:
1. KZE-BB Heavy-dust wing nut is ruggedly built specifically to withstand the hammer blows commonly used to tighten and loosen thin coupler.
2. Assembled valve seal can permits full pressure connect and disconnect, without seal washout.
3. The flush face valve keeps air inclusion and spillage to a minimum
4. Corrosion resistant brass coupling, makes it compatible with a widely range and provides widely functionality.
5. Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.

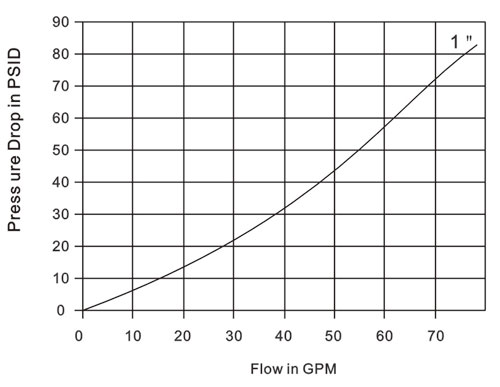

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

1 Inch Threaded Female Coupling Connect Under Pressure Hydraulic KZE-BB In Brass

KZE-BB series (1")

1 Inch Threaded Female Coupling Connect Under Pressure Hydraulic KZE-BB In Brass

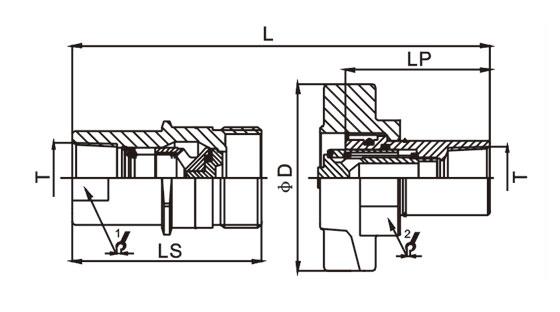

PART NO. T D HEX1 HEX2 L LS LP
KZE-BB-06 NPT3/4" 106 33.5 29 133.5 66 79.2
KZE-BB-08 NPT1" 110 39.5 36 157 83.5 90
KZE-BB-10 NPT1-1/4” 132 48 45 164 89 94
