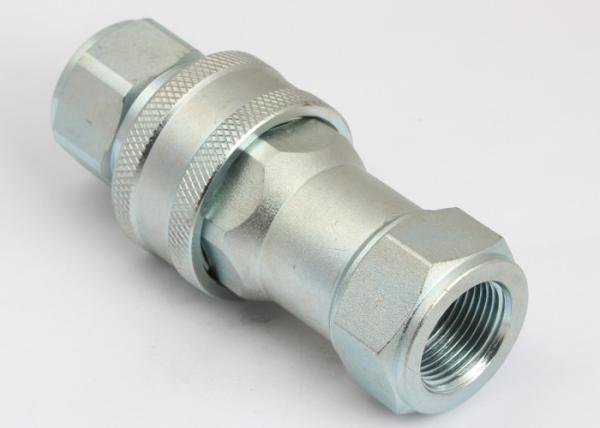

ISO A Hydraulic Quick Connect Couplings , Chrome Three Flat Face Hydraulic Coupler

Brand Name : SONGQIAO

Model Number : LSQ-TG

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : ISO 7241-1 series “A”, poppet valve

WP : Working pressures to 3,000 psi (207 bar)

Material : Carbon Steel

Size : 3/4' - 1'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Contact Now

LSQ-TG Hydraulic Quick Couplings in ISO A Carbon Steel, Chrome Three

Descripton:

LSQ-TG close type hydraulic quick coupling(steel)
The LSQ-TG Series couplings are the ideal choice where a tough, durable product of superior quality is
required. They are perfectly suited to industrial and agricultural applications. A poppet valve is used to
minimise the pressure drop characteristics and provide a positive sealing arrangement.
Specifications:
Body Size(in) 3/4 1
Rated Pressure(PSI) 3000 3000
Rated Flow(GPM) 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR
PARTNO. T HEX1 HEX2 ￠D L LS LP
LSQ-TG-06 G3/4 S38 S35 51 115 85 57
LSQ-TG-08 G1" S44.5 S41 57 130.5 98.5 65
LSQ-TG Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socket and plug are precision machined from solid bar stock.
6. LSQ-TG series conforms to the standard of ISO 7241-A..
7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Performance: Test Fluid:Oil-200SUS, 1GPM=3.78L/Min,1PSID=0.0069MPa.
LSQ-TG Series(3/4",1")
Socket
ISO PARTNO. LS ￠D HEX1 A T
20 LSQ-TG-06SF 85 49 S38 19 G3/4 NPT3/4
25 LSQ-TG-08SF 98.5 57 S44.5 23 G1" NPT1"
Plug
ISO PARTNO. LP d C HEX2 A T
20 LSQ-TG-06PF 57 29 29 S35 19 G3/4 NPT3/4
25 LSQ-TG-08PF 65 34.3 34.3 S41 23 G1" NPT1"
Coupled
ISO PARTNO. LP D HEX1 HEX2 T
20 LSQ-TG-06 115 49 S38 S35 G3/4 NPT3/4
25 LSQ-TG-08 130.5 57 S44.5 S41

G1" NPT1"
