Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

Name: Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241B
Brand: SONGQIAO
Price: 1 USD

Brand Name : SONGQIAO

Model Number : KZF

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : ISO 7241-1 series “B”, poppet valve

WP : Working pressures to 1,000 psi (69 bar)

Material : Stainless steel

Size : 1/8' - 2'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Contact Now

KZF, ISO7241-B Hydraulic Couplings in FeMale Thread, Stainless Steel SS304

Descripton:
KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.

Specifications

Body Size(in)	1/8	1/4	3/8	1/2	3/4	1	1(1/4)	1(1/2)	2
Rated Pressure(PSI)	2000	2000	1500	1500	1500	1000	1000	1000	1000
Rated Flow(GPM)	1	3	6	12	28	50	75	100	150
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	VITON

KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

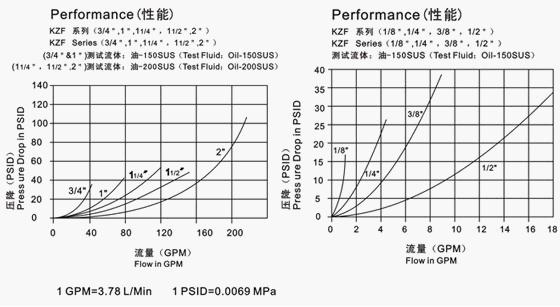

KZF (1/8",1/4",3/8",1/2") KZF (3/4",1",11/4",12/2",2")

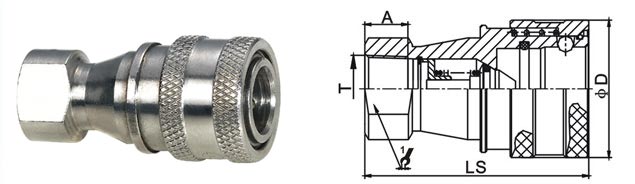

Socket

ISO	PARTNO.	LS	￠D	HEX1	A	T
5	KZF-01SF	48	24	14	8	G1/8
6.3	KZF-02SF	58	27	19	12.5	ZG1/4
10	KZF-03SF	65	35	22	13	ZG3/8
12.5	KZF-04SF	72.5	45	29	14	ZG1/2
20	KZF-06SF	88	54	36	17	ZG3/4
25	KZF-08SF	102	64.5	41	23	ZG1
31.5	KZF-10SF	115	69	54	27	ZG1-1/4
40	KZF-12SF	124	79	60	27	ZG1-1/2
50	KZF-16SF	132	102	77	30	ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B

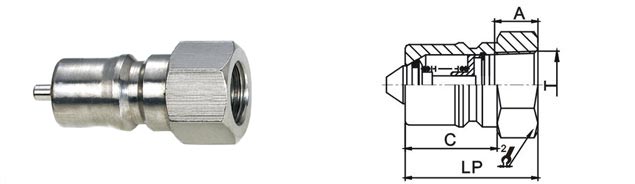

Plug
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

ISO	PARTNO.	LP	d	C	HEX2	A	T
5	KZF-01PF	29	10.8	19	14	8	G1/8
6.3	KZF-02PF	36	14.2	22.5	17	12.5	ZG1/4
10	KZF-03PF	40	19	25	22	13	ZG3/8
12.5	KZF-04PF	44	23.5	28	27	14	ZG1/2
20	KZF-06PF	52	31.4	36	36	17	ZG3/4
25	KZF-08PF	62	37.8	40	41	23	ZG1
31.5	KZF-10PF	70	45	45	52	27	ZG1-1/4
40	KZF-12PF	75	50	49	60	27	ZG1-1/2
50	KZF-16PF	80	70	52	77	30	ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B

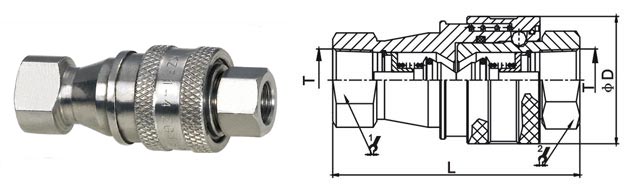

Coupling Fitting
Stainless Steel Hydraulic Quick Connect Couplings Female Thread KZF ISO7241-B

ISO	PART NO.	L	￠D	HEX1	HEX2	T
5	KZF-01	58.5	24	14	14	G1/8
6.3	KZF-02	72.5	28	19	17	ZG1/4
10	KZF-03	80.5	35	22	22	ZG3/8
12.5	KZF-04	89	45	29	27	ZG1/2
20	KZF-06	105	54	36	36	ZG3/4
25	KZF-08	124.5	64.5	41	41	ZG1
31.5	KZF-10	140.5	69	54	52	ZG1-1/4
40	KZF-12	150.5	79	60	60	ZG1-1/2
50	KZF-16	160.5	102	77	77	ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B
