Stainless Steel 1 Inch Hydraulic Quick Coupler Stander Seal Material SS316

Brand Name : SONGQIAO

Model Number : LSQ-S2SS

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : ISO 7241-1 series “B”, poppet valve

WP : Working pressures to 2,000 psi (138 bar)

Material : Stainless Steel SS316

Size : 1/8' - 1'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Contact Now

LSQ-S2SS Hydraulic Quick Couplings in ISO B, Stainless Steel SS316

Descripton:

LSQ-S2-SS close type hydraulic quick coupling(stainless steel 316)



Specifications:

Body Size(in) 1/8 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 2000 2000 1500 1500 1000 2000
Rated Flow(GPM) 1 3 6 12 28 50
Temperature Range(std seals) -20℃ to +180℃
Stander seal material VITON


LSQ-S2-SS Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S2-SS series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series

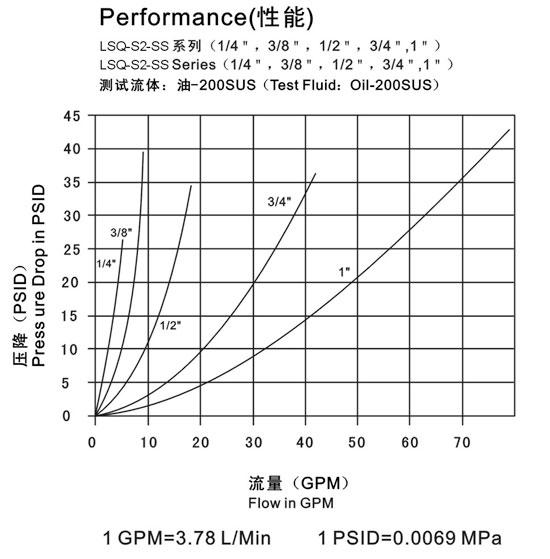

Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

Stainless Steel 1 Inch Hydraulic Quick Coupler Stander Seal Material SS316
LSQ-S2-SS Series(1/4",3/8",1/2",3/4",1")

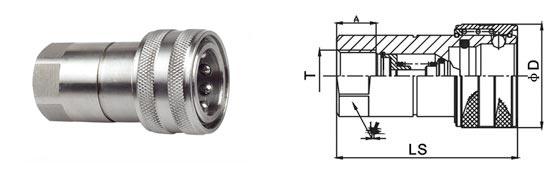

Socket

Stainless Steel 1 Inch Hydraulic Quick Coupler Stander Seal Material SS316

ISO PARTNO. LS ￠D HEX1 A T
5 LSQ-S2-SS-01SF 50 24 17 10 G1/8 NPT1/8
6.3 LSQ-S2-SS-02SF 58 28.5 19 13 G1/4 NPT1/4
10 LSQ-S2-SS-03SF 65 35 24 13 G3/8 NPT3/8
12.5 LSQ-S2-SS-04SF 73.4 42 30 17 G1/2 NPT1/2
20 LSQ-S2-SS-06SF 92 54 36 22 G3/4 NPT3/4
25 LSQ-S2-SS-08SF 103 65 41 23 G1 NPT1

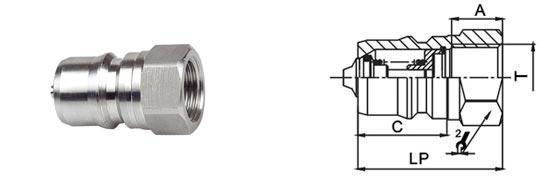

Plug
Stainless Steel 1 Inch Hydraulic Quick Coupler Stander Seal Material SS316

ISO PARTNO. LP d C HEX2 A T
5 LSQ-S2-SS-01PF 31 10.8 19 14 10 G1/8 NPT1/8
6.3 LSQ-S2-SS-02PF 36 14.2 22.8 19 13 G1/4 NPT1/4
10 LSQ-S2-SS-03PF 40 19 25 24 13 G3/8 NPT3/8
12.5 LSQ-S2-SS-04PF 46.5 23.5 28 27 17 G1/2 NPT1/2
20 LSQ-S2-SS-06PF 56 31.5 36 36 22 G3/4 NPT3/4
25 LSQ-S2-SS-08PF 63 37.8 35.5 41 23

G1" NPT1"

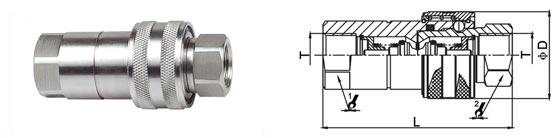

Coupled

Stainless Steel 1 Inch Hydraulic Quick Coupler Stander Seal Material SS316

ISO PARTNO. L ￠D HEX1 HEX2 T
5 LSQ-S2-SS-01 62.5 24 17 14 G1/8 NPT1/8
6.3 LSQ-S2-SS-02 72.2 28.5 19 19 G1/4 NPT1/4
10 LSQ-S2-SS-03 80.5 35 24 24 G3/8 NPT3/8
12.5 LSQ-S2-SS-04 91.5 42 30 27 G1/2 NPT1/2
20 LSQ-S2-SS-06 112.5 54 36 36 G3/4 NPT3/4
25 LSQ-S2-SS-08 126.5 65 41 41 G1 NPT1
