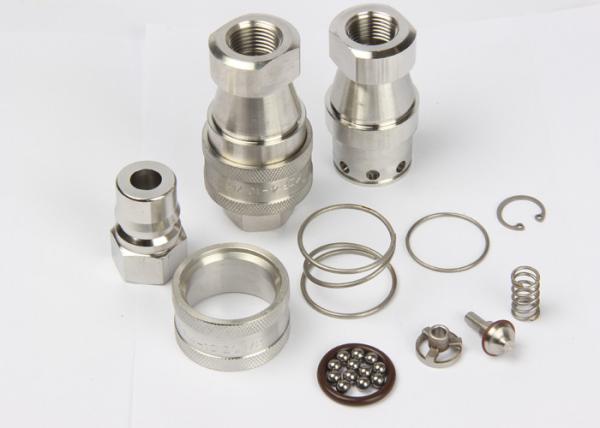

Chemical Line Use Interchange Hydraulic Coupling KZF Stainless Steel SS304

Brand Name : SONGQIAO

Model Number : KZF

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : ISO 7241-1 series “B”, poppet valve

WP : Working pressures to 1,000 psi (69 bar)

Material : Stainless steel

Size : 1/8' - 2'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Contact Now

KZF, ISO7241-B Hydraulic Quick Couplings Stainless Steel SS304

Descripton:

KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF ISO.B Series couplings are designed to be tough, durable and of superior quality to competing ISO
7241 products. They are ideally suited to heavy industrial applications which would typically include:
• Food processing and manufacture
• Shipbuilding
• Offshore
• Machine tool/automation
• Oil refineries
• Steel mills
•Chemicals and pharmaceuticals


Specifications

Body Size(in)1/81/43/81/23/411(1/4)1(1/2)2
Rated Pressure(PSI)200020001500150015001000100010001000
Rated Flow(GPM)13612285075100150
Temperature Range(std seals)-20℃ to +120℃
Standard seal materialVITON


KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

KZF (1/8",1/4",3/8",1/2") KZF (3/4",1",11/4",12/2",2")

Socket

ISOPARTNO.LS￠DHEX1AT
5KZF-01SF4824148G1/8
6.3KZF-02SF58271912.5ZG1/4
10KZF-03SF65352213ZG3/8
12.5KZF-04SF72.5452914ZG1/2
20KZF-06SF88543617ZG3/4
25KZF-08SF10264.54123ZG1
31.5KZF-10SF115695427ZG1-1/4
40KZF-12SF124796027ZG1-1/2
50KZF-16SF1321027730ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B


Plug

ISOPARTNO.LPdCHEX2AT
5KZF-01PF2910.819148G1/8
6.3KZF-02PF3614.222.51712.5ZG1/4
10KZF-03PF4019252213ZG3/8
12.5KZF-04PF4423.5282714ZG1/2
20KZF-06PF5231.4363617ZG3/4
25KZF-08PF6237.8404123ZG1
31.5KZF-10PF7045455227ZG1-1/4
40KZF-12PF7550496027ZG1-1/2
50KZF-16PF8070527730ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B


Coupling Fitting

ISOPART NO.L￠DHEX1HEX2T
5KZF-0158.5241414G1/8
6.3KZF-0272.5281917ZG1/4
10KZF-0380.5352222ZG3/8
12.5KZF-0489452927ZG1/2
20KZF-06105543636ZG3/4
25KZF-08124.564.54141ZG1
31.5KZF-10140.5695452ZG1-1/4
40KZF-12150.5796060ZG1-1/2
50KZF-16160.51027777ZG2
Note: Only size 01 to 08 conform to the standard of ISO 7241-B
