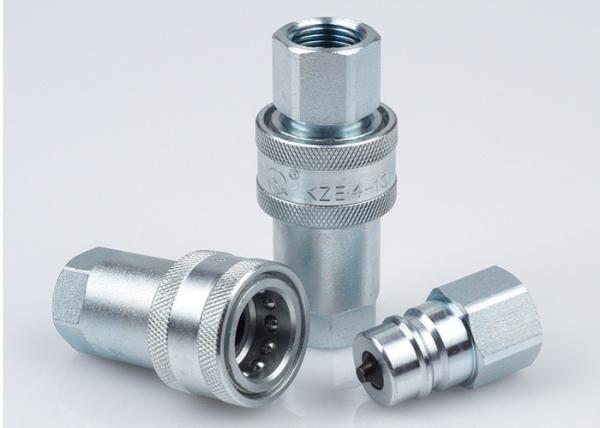

Chrome Three Hydraulic Quick Coupler Carbon Steel Professional KZE Close Type

Brand Name : SONGQIAO

Model Number : KZE

Place of Origin : Ningbo, China(Mainland)

Supply Ability : 50,000 pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement

Packaging Details : standard exporting package or as per customers' requests

MOQ : negotiable

Price : negotiable

Standard : Compatible with Chinese standard

WP : Working pressure to 5000 psi (345 bar)

Material : Carbon Steel

Size : 1/4"-2"

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Contact Now

KZE Chinese Type Hydraulic Couplings in Carbon Steel, Chrome Three

Descripton:

KZE close type hydraulic quick coupling(steel)
Applications: The KZE Series brings to the industry aproven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.

Specifications:

Body Size(in) 1/8 1/4 3/8 1/2 1" 1-1/4" 1-1/2" 2"
Rated Pressure(PSI) 5000 3000 3000 3000 3000 2000 2000 1500
Temperature Range(std seals) -20℃ to +120℃
Standard seal material is NBR

Socket

PARTNO. LS ￠D HEX1 A T
KZE-01SF 49 28 17 9 G1/8
KZE-02SF 58.2 27 19 12.5 G1/4
KZE-03SF 65 35 22 13 G3/8
KZE-04SF 66.2 39.5 27 17 G1/2
KZE-06SF 79.2 49 34 18 G3/4
KZE-08SF 94 56 41 21 1
KZE-10SF 115 69 54 27 G1-1/4
KZE-12SF 124 79 60 27 G1-1/2
KZE-16SF 132.3 102 77 30 G2

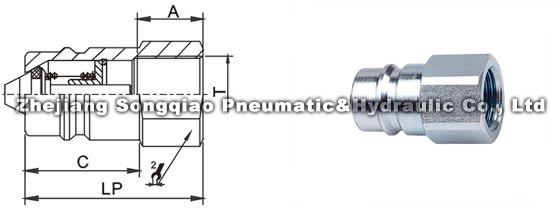

Plug
Chrome Three Hydraulic Quick Coupler Carbon Steel Professional KZE Close Type

PARTNO. LP C HEX2 A T
KZE-01PF 36 17 17 9 G1/8
KZE-02PF 36 22.5 19 12.5 G1/4
KZE-03PF 40 25 22 13 G3/8
KZE-04PF 46 25 27 17 G1/2
KZE-06PF 55 26 34 18 G3/4
KZE-08PF 59.5 36 41 21 1
KZE-10PF 70 45 52 27 G1-1/4
KZE-12PF 75 49 60 27 G1-1/2
KZE-16PF 80 52 77 30 G2
