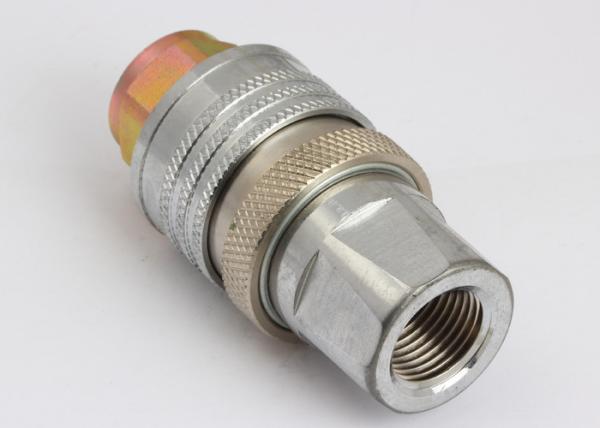

1/2"-1" Hydraulic Quick Connect Couplings LSQ-TM Hydraulic Quick Disconnect Fittings

Brand Name : SONGQIAO

Model Number : LSQ-TM

Place of Origin : Ningbo, China(Mainland)

Supply Ability : 50,000 pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement

Packaging Details : standard exporting package or as per customers' requests

MOQ : negotiable

Price : negotiable

Standard : Compatible with TEMA TH Series

WP : Working pressure to 3000psi (207 bar)

Material : Carbon Steel

Size : 1/2"-1"

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Locking balls

Contact Now

LSQ-TM, TEMA TH Type, Hydraulic Quick Action Couplings in Carbon Steel, Chrome Three


Specifications:

Body Size(in) 1/2 3/4 1
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal NBR

LSQ-TM Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socked and plug are precision machined from solid bar stock.
6. Compatible with TEMA TH5000 Series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa

TPL series (1/2")

PARTNO. T ￠D HEX1 HEX2 L LS LP
LSQ-TM-04 G1/2 40 S30 S27 83.4 66.7 41.5
LSQ-TM-06 G3/4 52 S38.3 S36 94.5 76.4 47
LSQ-TM-08 G1 62 S45 S45 113.8 92.4

56.5
